11910050

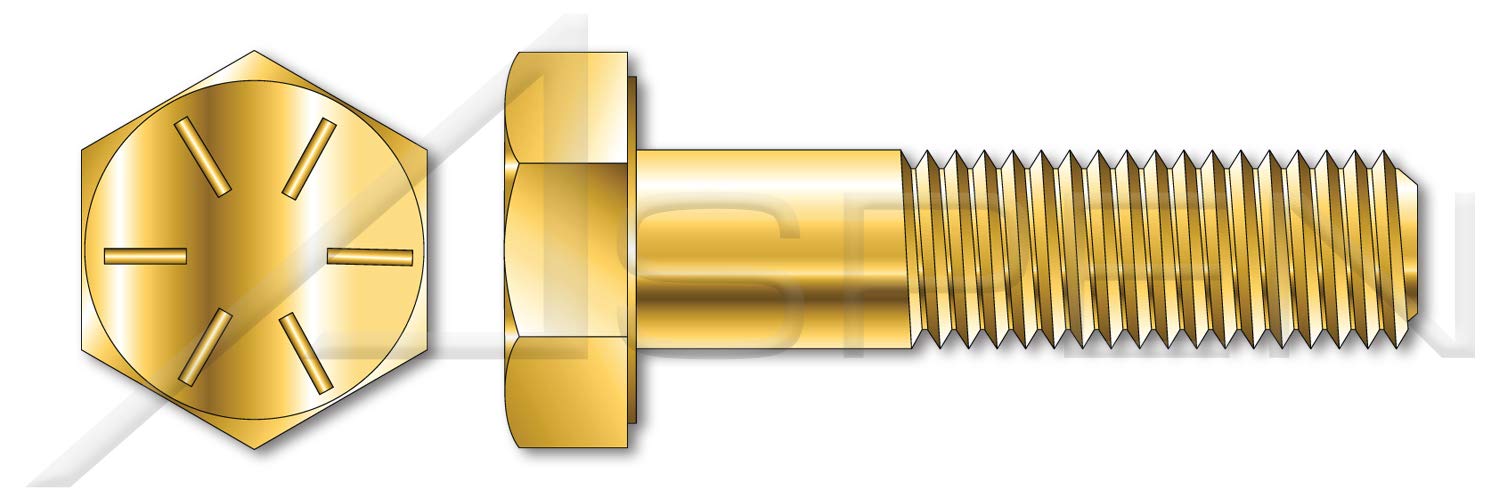

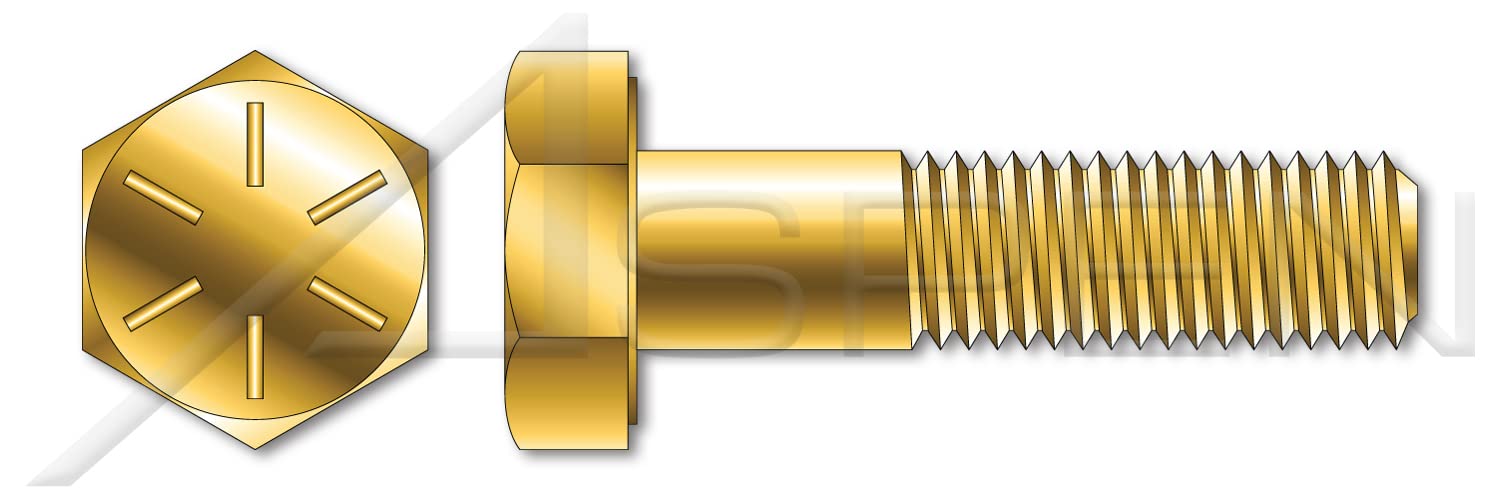

DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 1/4"- Thread Pitch: 28- Diameter (Dimension): 0.25"- Diameter (Minimum): 0.245"- Diameter (Maximum): 0.250"- Length (Nominal): 1-3/4"- Thread Length (Nominal): 0.75"- Across Flats (Basic): 7/16"- Across Flats (Minimum): 0.428"- Across Flats (Maximum): 0.438"- Head Height, Overall: 0.1563"- Head Height, Overall (Minimum): 0.150"- Head Height, Overall (Maximum): 0.163"PRODUCT ATTRIBUTES- Category: Cap Screws- System of Measurement: Inch- Brand: Aspen Fasteners- Head Style: Hex Head- Head Style Detail: Washer Face- Head Markings: Six radial lines 60 degrees apart and manufacturer ID- Drive Style: External Hex Drive- Pitch: UNF Fine Thread- Thread Direction: Right-Hand Thread- Point: Chamfered Point- Material: Steel- Material Grade: Grade 8- Coating: Zinc Plated- Coating Color: Yellow- Origin: Made in U.S.A.- Standards and Specifications: ASME B18.2.1 and SAE J429NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
The heads of grade 8 steel fasteners are typically marked with 6 raised radial lines.
The washer face under the head provides a precision bearing surface.
Grade 8 steel fasteners have a minimum tensile strength of 150,000 pounds per square inch.
The chamfered point improves engagement with a nut or pre-tapped hole.
