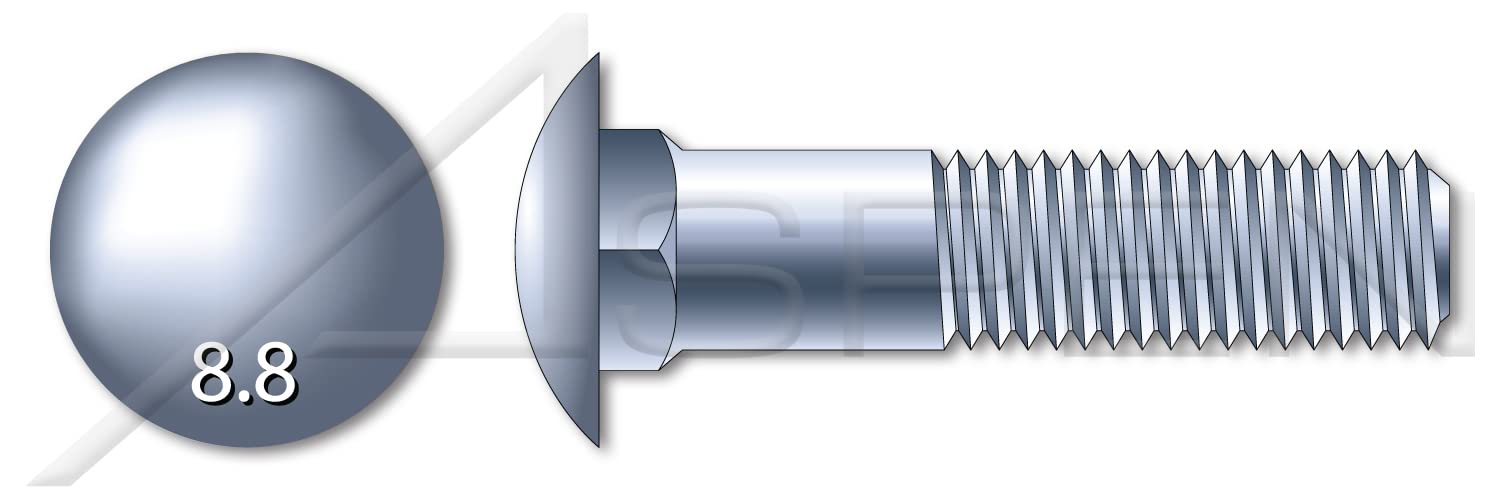

50pcs M12-1.75x120mm Carriage Bolts Zinc Plated for Furniture & Construction

Also known as coach bolts, are typically used to fasten metal to wood. The square neck under the head locks the bolt into place. Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa). Can be used as a security fastener. The smooth head prevents unfastening from the head side.DIMENSIONAL ATTRIBUTES Diameter (Nominal): M12 Thread Pitch: 1.75 Diameter (Dimension): 12mm Diameter (Minimum): 11.3mm Diameter (Maximum): 12mm Length (Nominal): 120mm Thread Length (Nominal): 30mm Neck Width: 12.7mm Neck Height: 8.75mm Head Diameter (Minimum): 29.35mm Head Diameter (Maximum): 30.65mm Head Height, Overall (Minimum): 6.05mm Head Height, Overall (Maximum): 6.95mmPRODUCT ATTRIBUTES Category: Carriage Bolts System of Measurement: Metric Brand: Aspen Fasteners® Head Style: Round Head Head Style Detail: Square Neck Head Markings: Material Grade Mark "8.8" Thread Length: Standard Thread Length Thread Direction: Right-Hand Thread Material: Steel Material Grade: Class 8.8 Steel Coating: Zinc Plated Coating Color: Clear Standards and Specifications: DIN 603 / ISO 8677
