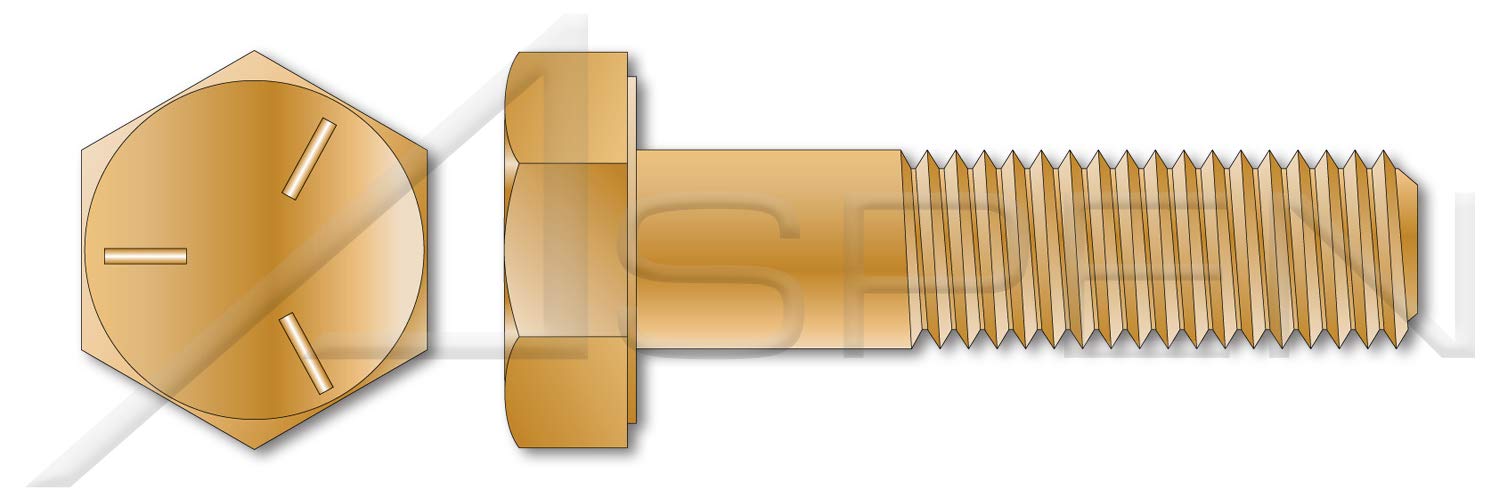

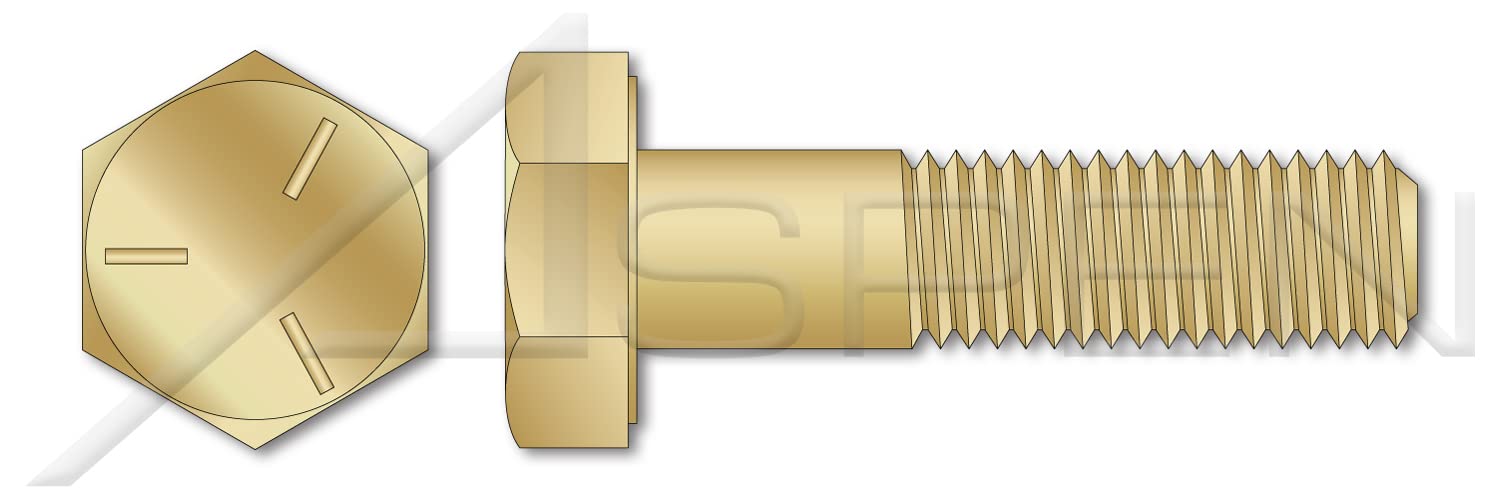

100 Pcs 9/16"-12 x 3-3/4" Hex Head Cap Screws Bolts - Grade 5 Steel, Coarse Thread, Yellow Cadmium Plating (MS90725, DFARS Compliant) - Ideal for Construction, Machinery & Automotive Applications

Military grade fasteners are DFARS compliant and made in North America. Certifications available. Hex cap screws are manufactured to tighter tolerances as compared to hex bolts. The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines. The washer face under the head provides a precision bearing surface. Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch. The chamfered point improves engagement with a nut or pre-tapped hole. Cadmium plating offer outstanding corrosion resistance, even in high-salt environments.DIMENSIONAL ATTRIBUTES Diameter (Nominal): 9/16" Thread Pitch: 12 Diameter (Dimension): 0.5625" Diameter (Minimum): 0.5545" Diameter (Maximum): 0.5625" Length (Nominal): 3-3/4" Thread Length (Nominal): 1.375" Across Flats (Basic): 13/16" Across Flats (Minimum): 0.798" Across Flats (Maximum): 0.812" Head Height, Overall: 0.3594" Head Height, Overall (Minimum): 0.348" Head Height, Overall (Maximum): 0.371"PRODUCT ATTRIBUTES Category: Cap Screws System of Measurement: Inch Brand: Aspen Fasteners Head Style: Hex Head Head Style Detail: Washer Face Head Markings: Three radial lines 120 degrees apart and manufacturer ID Drive Style: External Hex Drive Pitch: Coarse Thread Thread Direction: Right-Hand Thread Point: Chamfered Point Material: Steel Material Grade: Grade 5 Coating: Cadmium Plated Coating Color: Yellow Origin: Made in U.S.A. Standards and Specifications: MS90725, DFARS
