About Flange Bolts Flange bolts have a circular flange under the head that acts like a washer to distribute the load. Flange bolts that are non-serrated are sometimes called frame bolts. Flange Bolts Used in automotive applications, plumbing, and more, flange bolts feature a washer like flange beneath the bolt head that speeds production time and distributes the clamping load, offering protection to the mating surface.

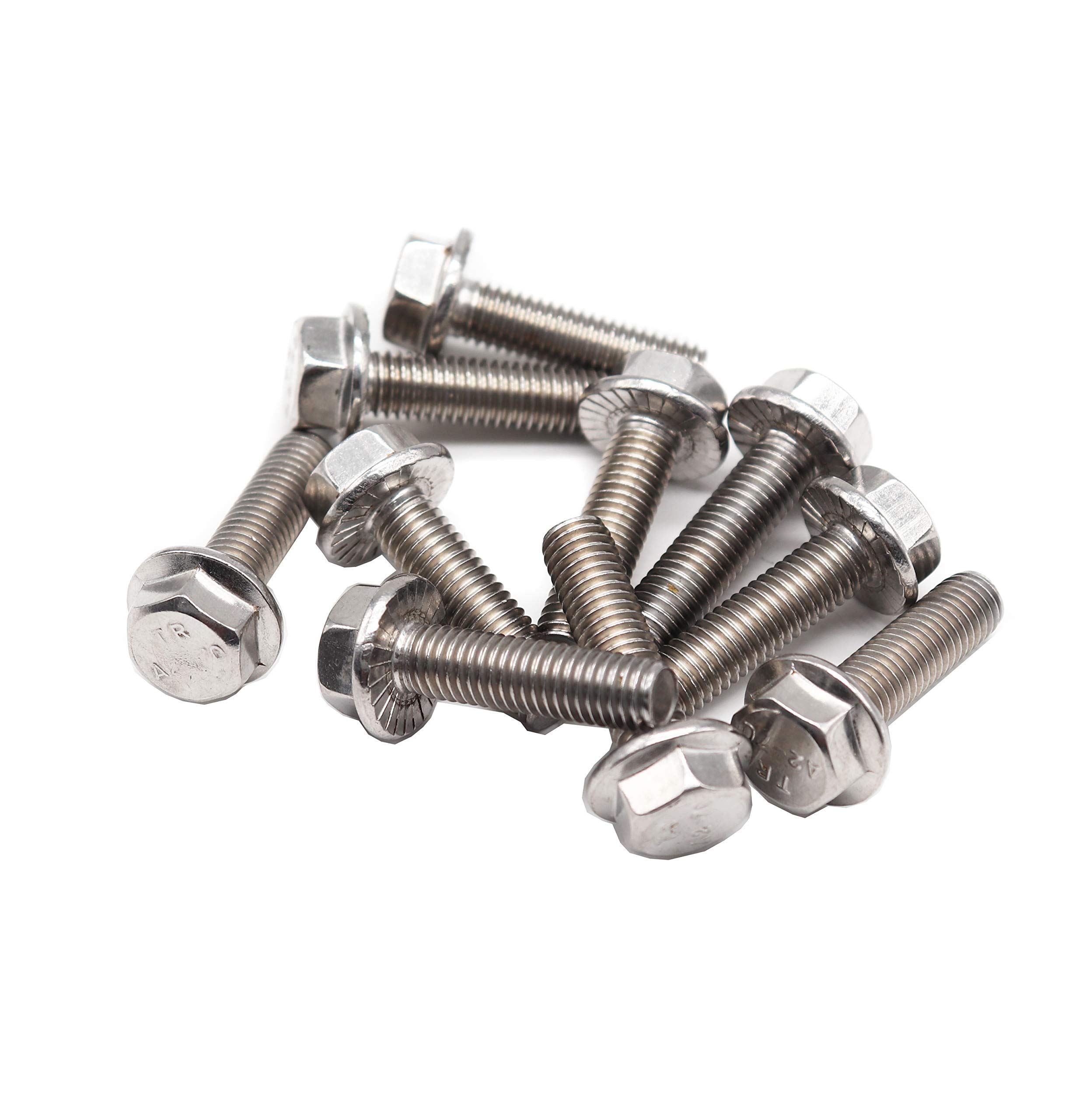

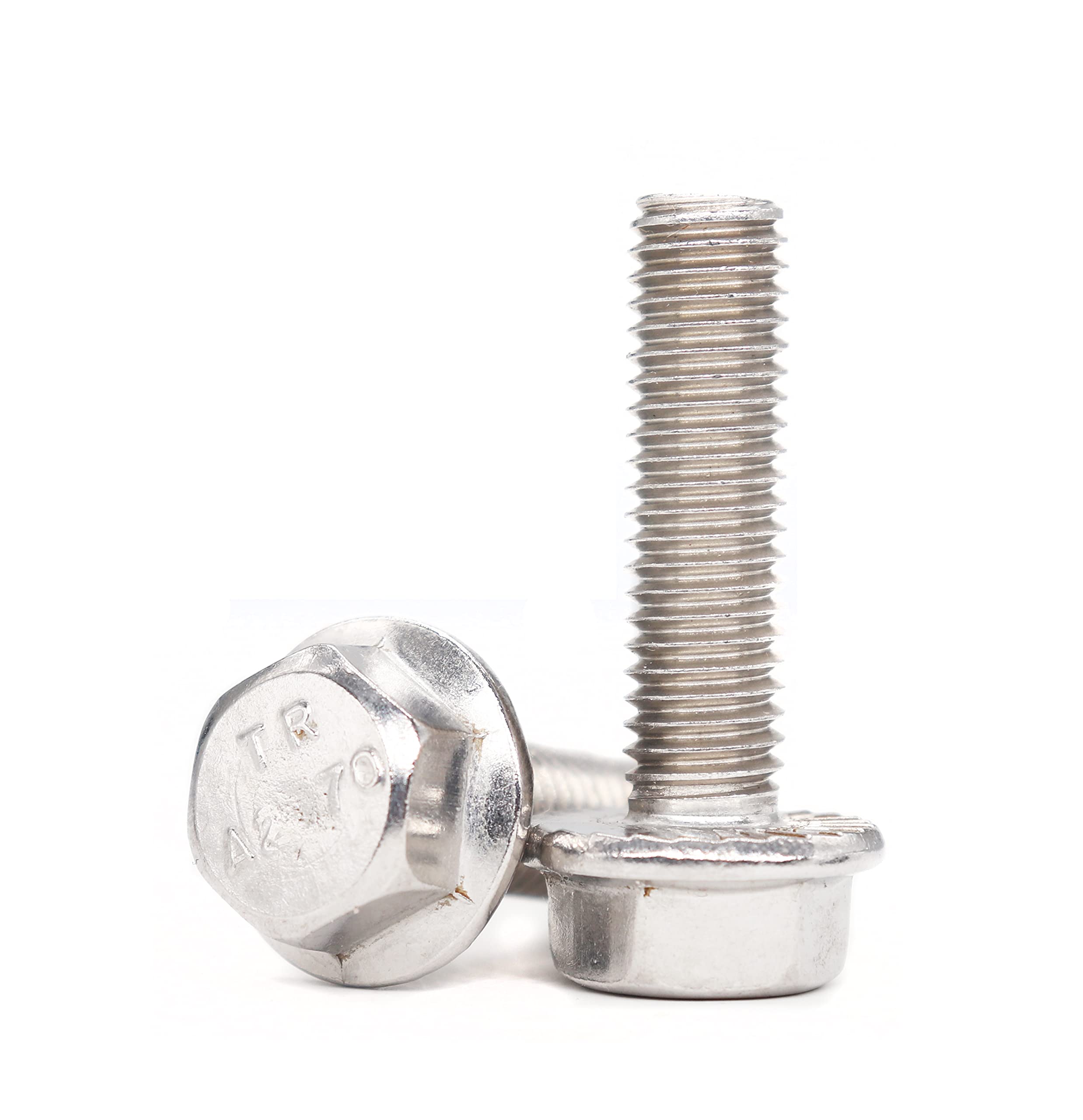

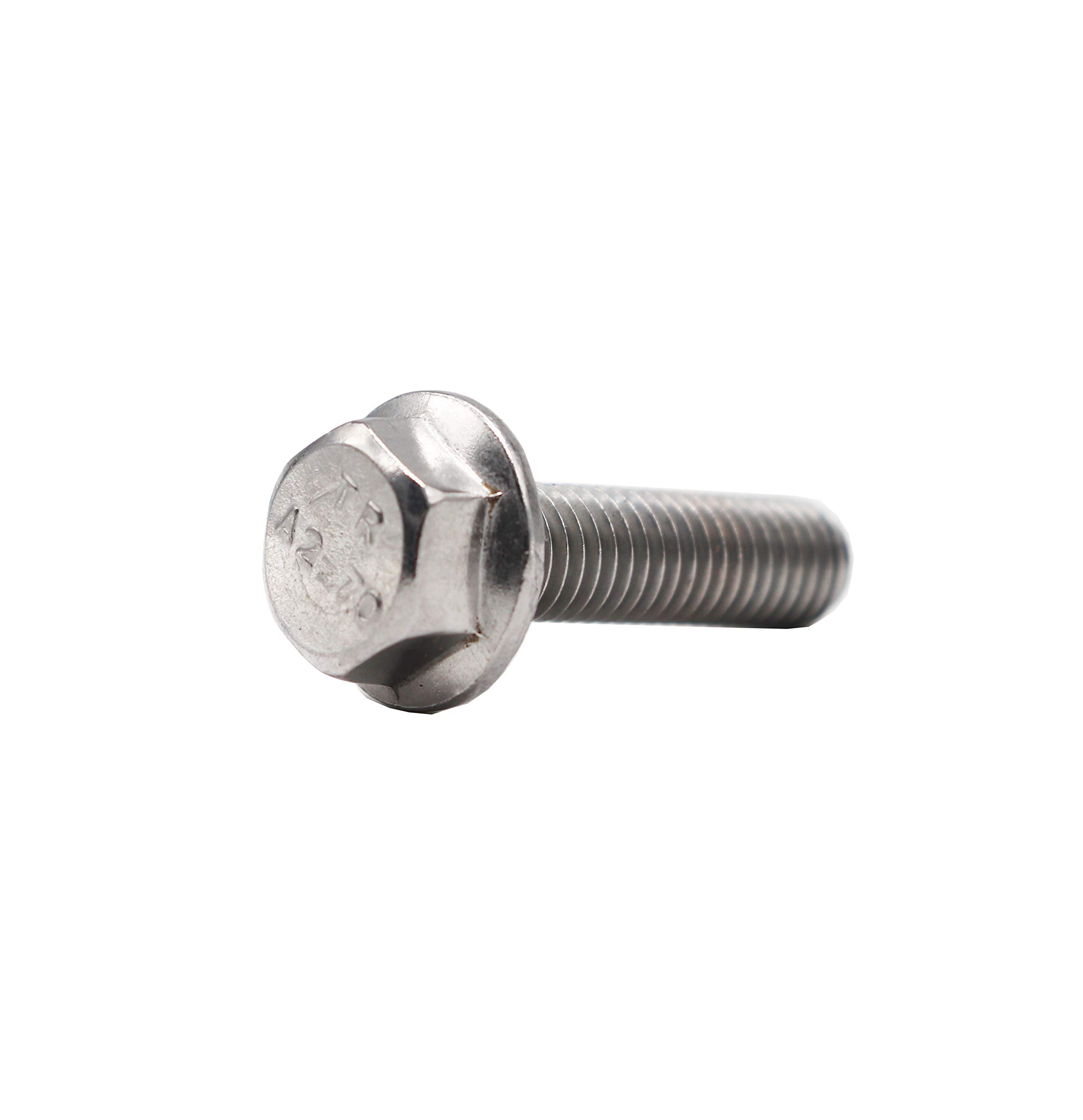

[✔] Product Name M8 20mm Hex Flange Bolt; [✔] Thread Size M8x20mm;
[✔] Head Style Hex Head; [✔] Package Content 10pcs x Hex Flange Bolt;
[✔] Main Color Silver Tone; [✔] Total Length 28mm; [✔] Material 304 Stainless Steel / A2-70 / ;

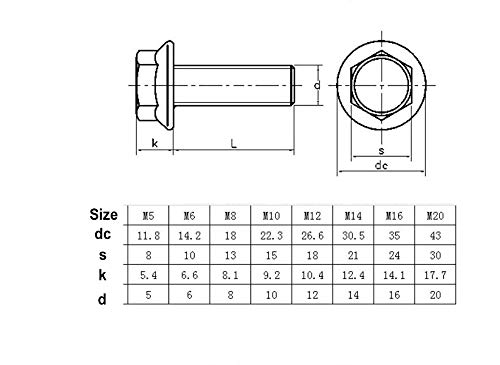

[✔] Thread Pitch(Coarse Thread) 1.25mm; [✔] Flange Diameter 18mm;
[✔] Hex Width 12mm; [✔] Head Thickness 8mm;
