48297862

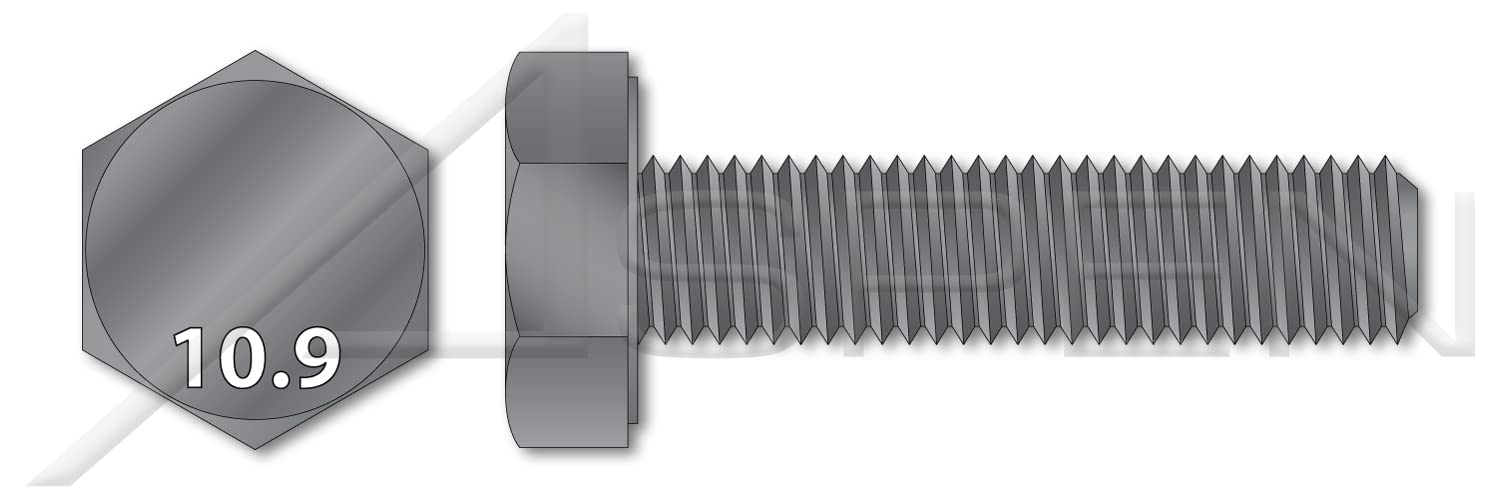

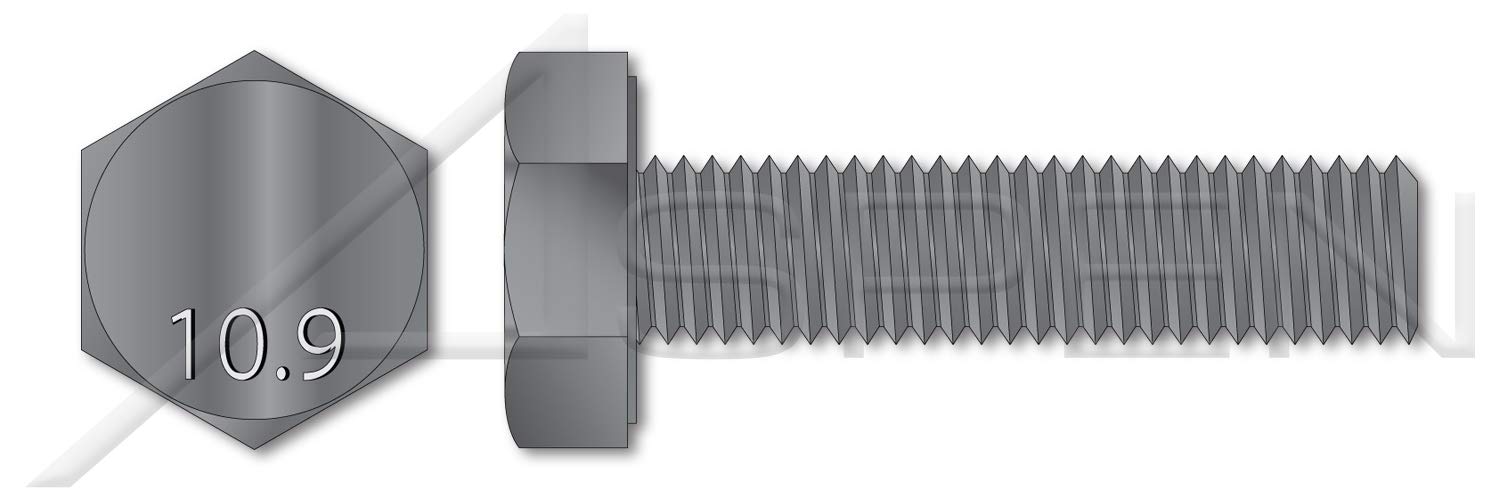

DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M24- Thread Pitch: 3.0- Diameter (Dimension): 24mm- Length (Nominal): 60mm- Thread Length (Nominal): 60mm- Across Flats (Basic): 36mm- Across Flats (Minimum): 35.38mm- Across Flats (Maximum): 36mm- Head Height, Overall: 15mm- Head Height, Overall (Minimum): 14.78mm- Head Height, Overall (Maximum): 15.22mmPRODUCT ATTRIBUTES- Category: Cap Screws- System of Measurement: Metric- Brand: Aspen Fasteners- Head Style: Hex Head- Head Style Detail: Washer Face- Drive Style: External Hex Drive- Pitch: Coarse Thread- Thread Length: Full Thread- Thread Direction: Right-Hand Thread- Point: Chamfered Point- Material: Steel- Material Grade: Class 10.9 Steel- Material Processes: Quenched and Tempered- Coating: Uncoated- Origin: Origin Undefined- Standards and Specifications: DIN 933 / ISO 4017NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
The washer face under the head provides a precision bearing surface.
The chamfered point improves engagement with a nut or pre-tapped hole.
