59361397

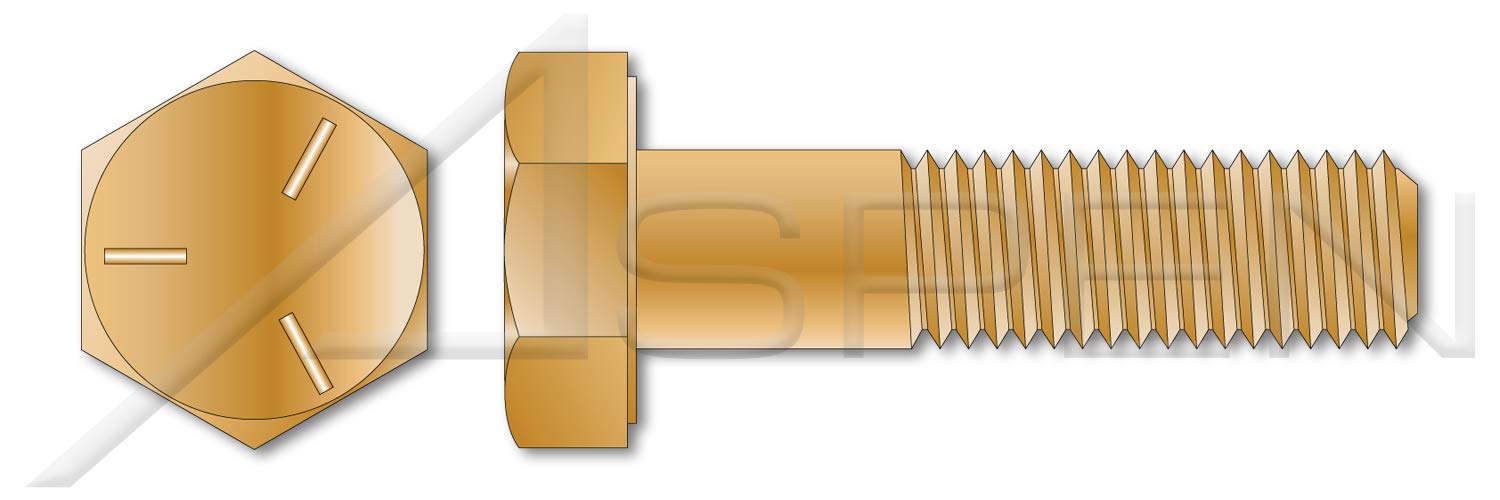

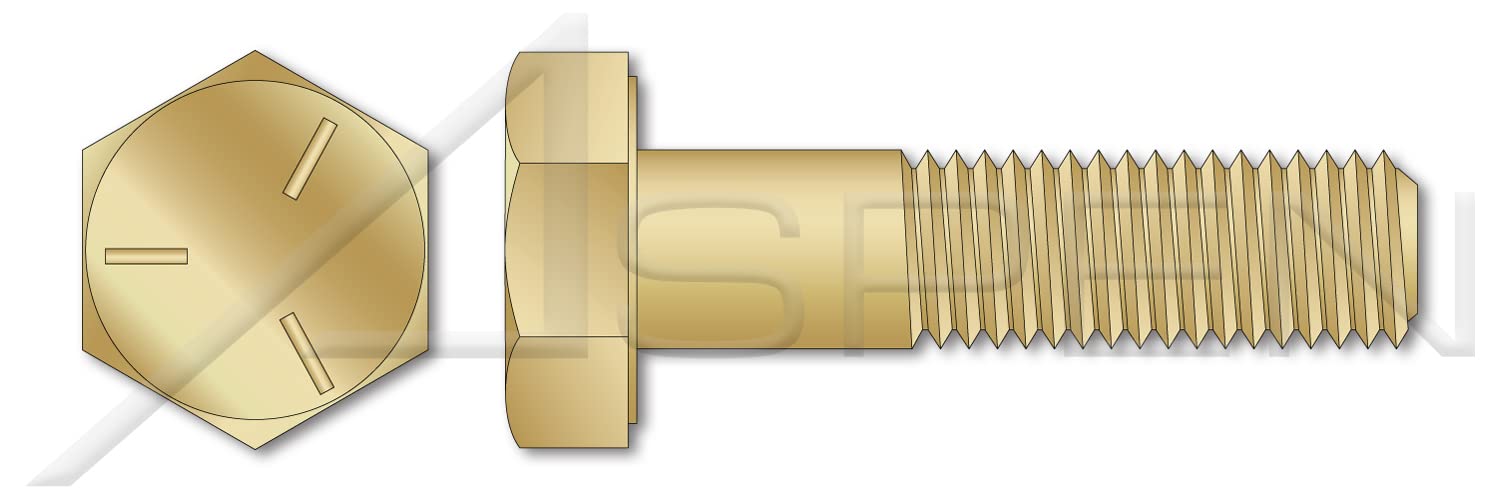

DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 3/4"- Thread Pitch: 10- Diameter (Dimension): 0.75"- Diameter (Minimum): 0.741"- Diameter (Maximum): 0.750"- Length (Nominal): 3-1/2"- Thread Length (Nominal): 1.75"- Across Flats (Basic): 1-1/8"- Across Flats (Minimum): 1.100"- Across Flats (Maximum): 1.125"- Head Height, Overall: 15/32"- Head Height, Overall (Minimum): 0.455"- Head Height, Overall (Maximum): 0.483"PRODUCT ATTRIBUTES- Category: Cap Screws- System of Measurement: Inch- Brand: Aspen Fasteners- Head Style: Hex Head- Head Style Detail: Washer Face- Head Markings: Three radial lines 120 degrees apart and manufacturer ID- Drive Style: External Hex Drive- Pitch: Coarse Thread- Thread Direction: Right-Hand Thread- Point: Chamfered Point- Material: Steel- Material Grade: Grade 5- Coating: Cadmium Plated- Coating Color: Yellow- Origin: Made in U.S.A.- Standards and Specifications: MS90725, DFARSNB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Military grade fasteners are DFARS compliant and made in North America. Certifications available.
Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
The washer face under the head provides a precision bearing surface.
Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
