60017630
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M14- Thread Pitch: 2.0- Diameter (Dimension): 14mm- Length (Nominal): 200mm- Thread Length (Nominal): 40mm- Across Flats (Basic): 22mm- Across Flats (Minimum): 21.67mm- Across Flats (Maximum): 22mm- Head Height, Overall: 8.8mm- Head Height, Overall (Minimum): 8.62mm- Head Height, Overall (Maximum): 8.98mm- Body Diameter (Minimum): 13.73mm- Body Diameter (Maximum): 14mmPRODUCT ATTRIBUTES- Category: Cap Screws- System of Measurement: Metric- Brand: Aspen Fasteners- Head Style: Hex Head- Head Style Detail: Washer Face- Drive Style: External Hex Drive- Pitch: Coarse Thread- Thread Length: Part Thread- Thread Direction: Right-Hand Thread- Point: Chamfered Point- Material: Stainless Steel- Material Grade: A4-80 Stainless Steel- Coating: Uncoated- Origin: Origin Undefined- Standards and Specifications: DIN 931 / ISO 4014NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

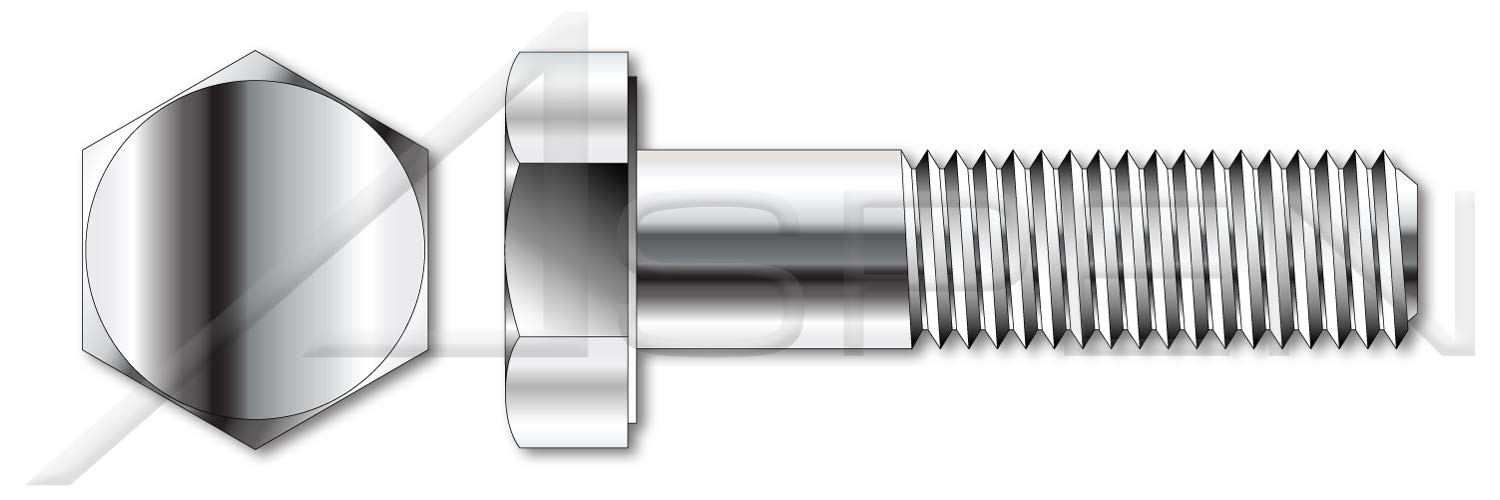

Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
A4-80 stainless steel provides a minimum tensile strength of 800N/mm-2 (Mpa).
Stainless steel significantly improves resistance to tarnishing or corrosion.
The washer face under the head provides a precision bearing surface.
The chamfered point improves engagement with a nut or pre-tapped hole.
