66588055

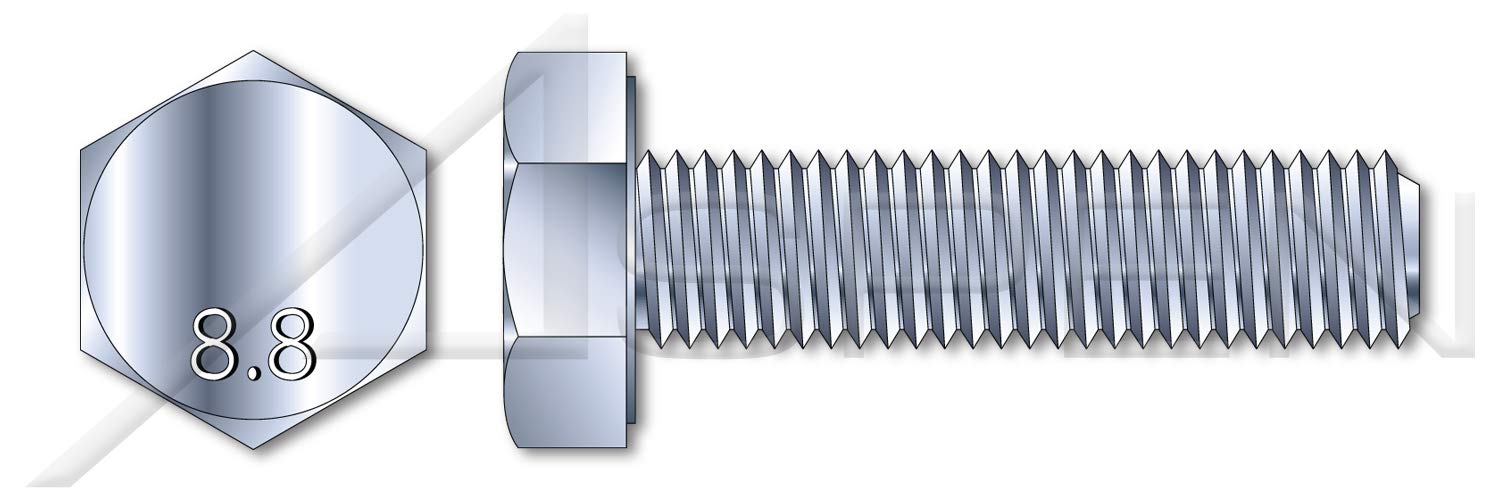

DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M12- Thread Pitch: 1.75- Diameter (Dimension): 12mm- Length (Nominal): 25mm- Thread Length (Nominal): 25mm- Across Flats (Basic): 19mm- Across Flats (Minimum): 18.67mm- Across Flats (Maximum): 19mm- Head Height, Overall: 7.5mm- Head Height, Overall (Minimum): 7.32mm- Head Height, Overall (Maximum): 7.68mmPRODUCT ATTRIBUTES- Category: Cap Screws- System of Measurement: Metric- Brand: Aspen Fasteners- Head Style: Hex Head- Head Style Detail: Washer Face- Drive Style: External Hex Drive- Pitch: Coarse Thread- Thread Length: Full Thread- Thread Direction: Right-Hand Thread- Point: Chamfered Point- Material: Steel- Material Grade: Class 8.8 Steel- Material Processes: Quenched and Tempered- Coating: Zinc Plated- Coating Color: Clear- Origin: Origin Undefined- Standards and Specifications: DIN 933 / ISO 4017NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
The washer face under the head provides a precision bearing surface.
The chamfered point improves engagement with a nut or pre-tapped hole.
