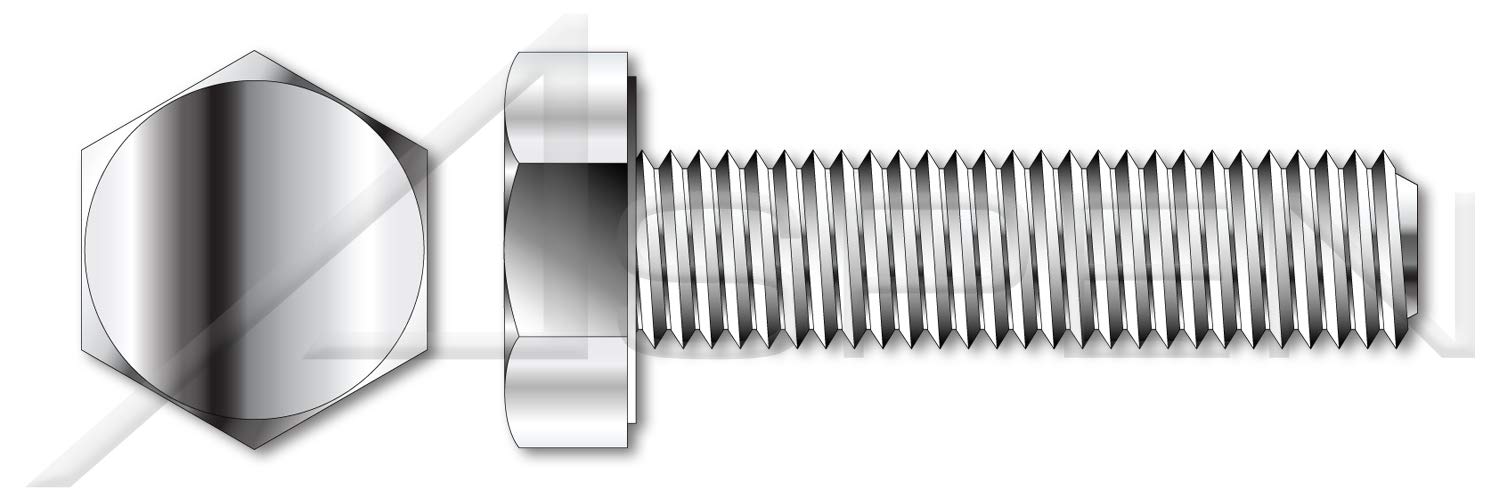

M14-2.0x100mm Hex Head Cap Screws (50pcs) - A2 Stainless Steel for Construction & Machinery

Hex cap screws are manufactured to tighter tolerances as compared to hex bolts. A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel. Stainless steel significantly improves resistance to tarnishing or corrosion. The washer face under the head provides a precision bearing surface. The chamfered point improves engagement with a nut or pre-tapped hole.DIMENSIONAL ATTRIBUTES Diameter (Nominal): M14 Thread Pitch: 2.0 Diameter (Dimension): 14mm Length (Nominal): 100mm Thread Length (Nominal): 100mm Across Flats (Basic): 22mm Across Flats (Minimum): 21.67mm Across Flats (Maximum): 22mm Head Height, Overall: 8.8mm Head Height, Overall (Minimum): 8.62mm Head Height, Overall (Maximum): 8.98mmPRODUCT ATTRIBUTES Category: Cap Screws System of Measurement: Metric Brand: Aspen Fasteners Head Style: Hex Head Head Style Detail: Washer Face Drive Style: External Hex Drive Pitch: Coarse Thread Thread Length: Full Thread Thread Direction: Right-Hand Thread Point: Chamfered Point Material: Stainless Steel Material Grade: A2 Stainless Steel Coating: Uncoated Standards and Specifications: DIN 933 / ISO 4017
