85344661

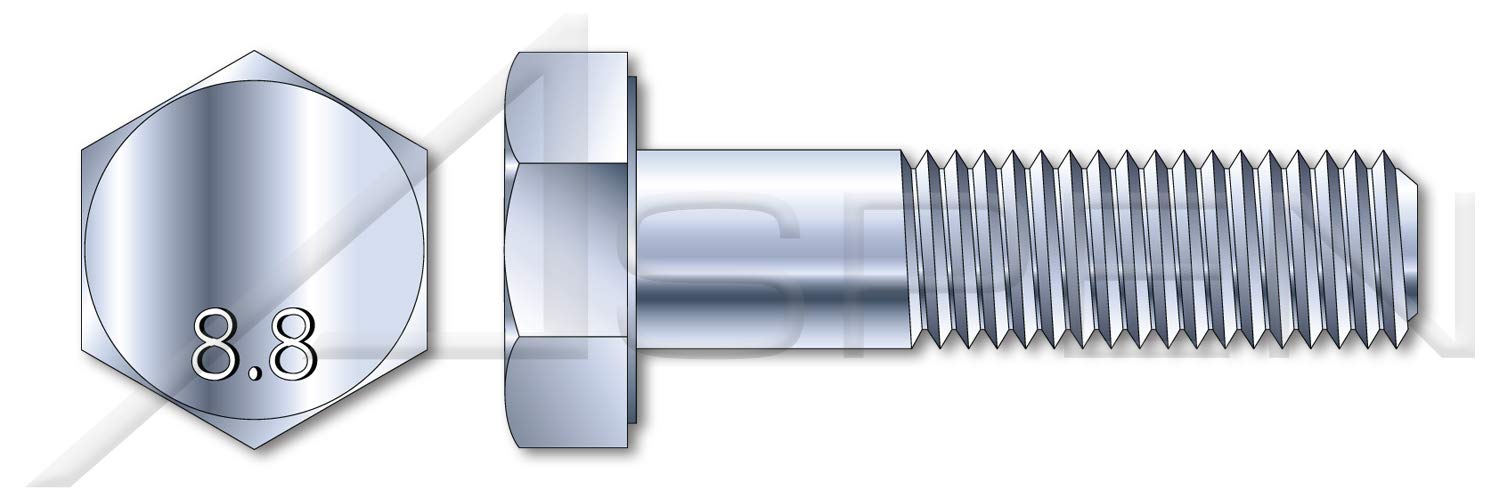

DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M6- Thread Pitch: 1.0- Diameter (Dimension): 6mm- Length (Nominal): 90mm- Thread Length (Nominal): 18mm- Across Flats (Basic): 10mm- Across Flats (Minimum): 9.78mm- Across Flats (Maximum): 10mm- Head Height, Overall: 4mm- Head Height, Overall (Minimum): 3.85mm- Head Height, Overall (Maximum): 4.15mm- Body Diameter (Minimum): 5.82mm- Body Diameter (Maximum): 6mmPRODUCT ATTRIBUTES- Category: Cap Screws- System of Measurement: Metric- Brand: Aspen Fasteners- Head Style: Hex Head- Head Style Detail: Washer Face- Drive Style: External Hex Drive- Pitch: Coarse Thread- Thread Length: Part Thread- Thread Direction: Right-Hand Thread- Point: Chamfered Point- Material: Steel- Material Grade: Class 8.8 Steel- Material Processes: Quenched and Tempered- Coating: Zinc Plated- Coating Color: Clear- Origin: Origin Undefined- Standards and Specifications: DIN 931 / ISO 4014NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
The washer face under the head provides a precision bearing surface.
The chamfered point improves engagement with a nut or pre-tapped hole.
