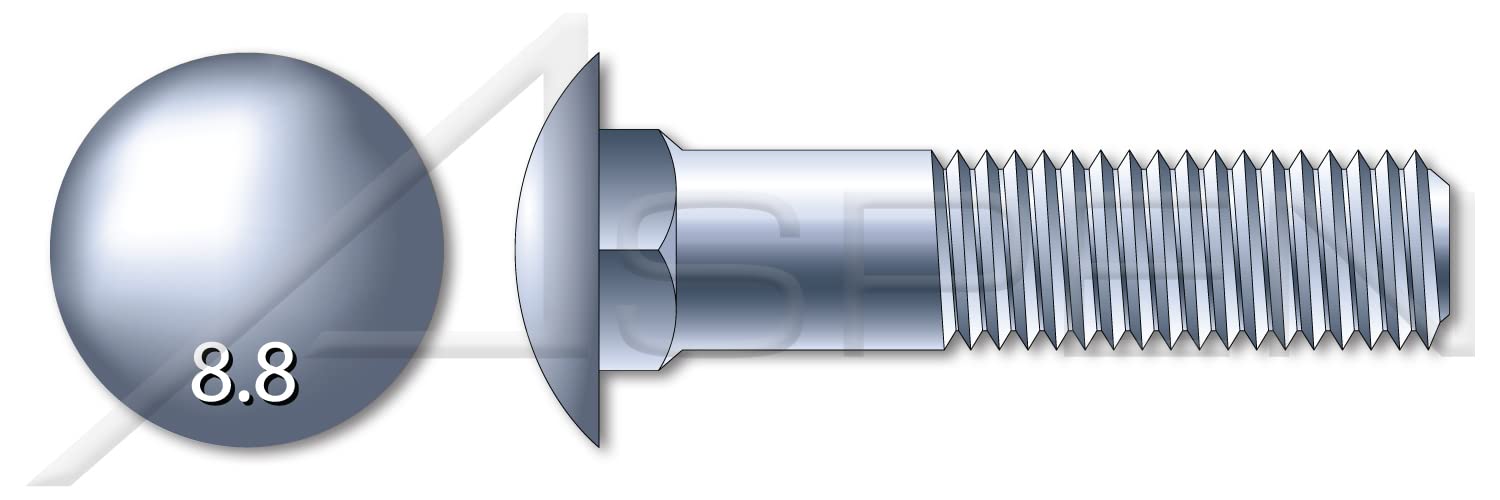

M6-1.0x50mm Carriage Bolts Class 8.8 Zinc Plated for Construction & Furniture

Also known as coach bolts, are typically used to fasten metal to wood. The square neck under the head locks the bolt into place. Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa). Can be used as a security fastener. The smooth head prevents unfastening from the head side.DIMENSIONAL ATTRIBUTES Diameter (Nominal): M6 Thread Pitch: 1.0 Diameter (Dimension): 6mm Diameter (Minimum): 5.52mm Diameter (Maximum): 6mm Length (Nominal): 50mm Thread Length (Nominal): 18mm Neck Width: 6.48mm Neck Height: 4.6mm Head Diameter (Minimum): 15.45mm Head Diameter (Maximum): 16.55mm Head Height, Overall (Minimum): 3.12mm Head Height, Overall (Maximum): 3.88mmPRODUCT ATTRIBUTES Category: Carriage Bolts System of Measurement: Metric Brand: Aspen Fasteners® Head Style: Round Head Head Style Detail: Square Neck Head Markings: Material Grade Mark "8.8" Thread Length: Standard Thread Length Thread Direction: Right-Hand Thread Material: Steel Material Grade: Class 8.8 Steel Coating: Zinc Plated Coating Color: Clear Standards and Specifications: DIN 603 / ISO 8677
