98577808

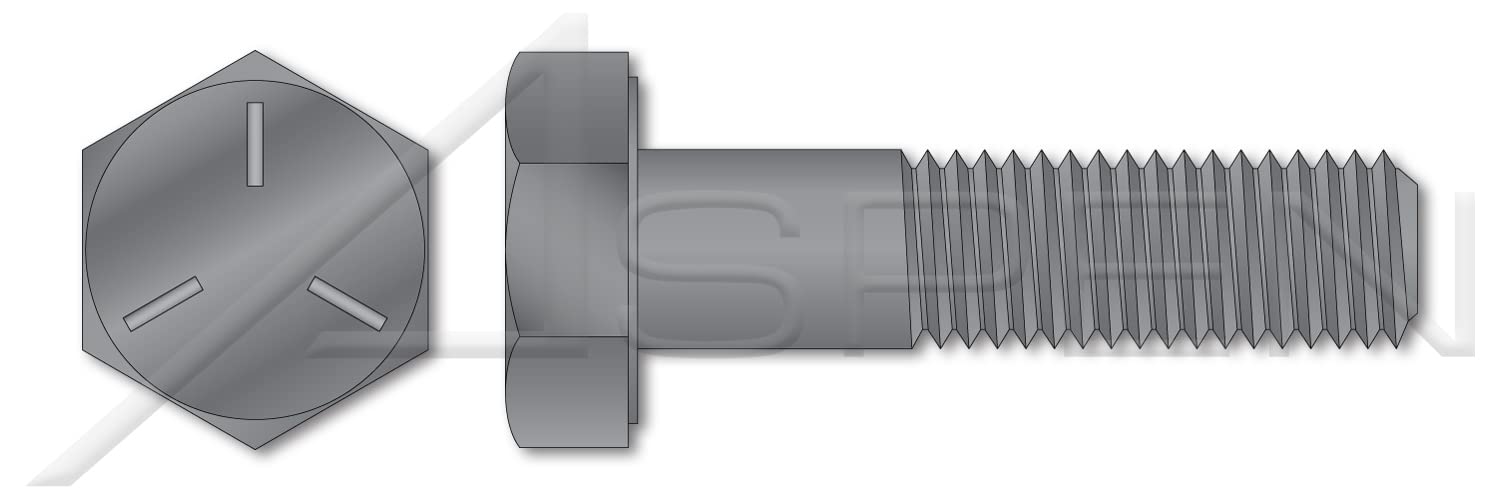

DIMENSIONAL ATTRIBUTES- Diameter (Nominal): 5/16"- Thread Pitch: 18- Length (Nominal): 2-3/4"PRODUCT ATTRIBUTES- Category: Cap Screws- System of Measurement: Inch- Brand: Aspen Fasteners®- Head Style: Hex Head- Head Style Detail: Washer Face- Drive Style: External Hex Drive- Pitch: UNC Coarse Thread- Thread Direction: Right-Hand Thread- Point: Chamfered Point- Material: Steel- Material Grade: Grade 5 Steel- Coating: Uncoated- Origin: Made in U.S.A.- Standards and Specifications: ASME B18.2.1 and SAE J429NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.

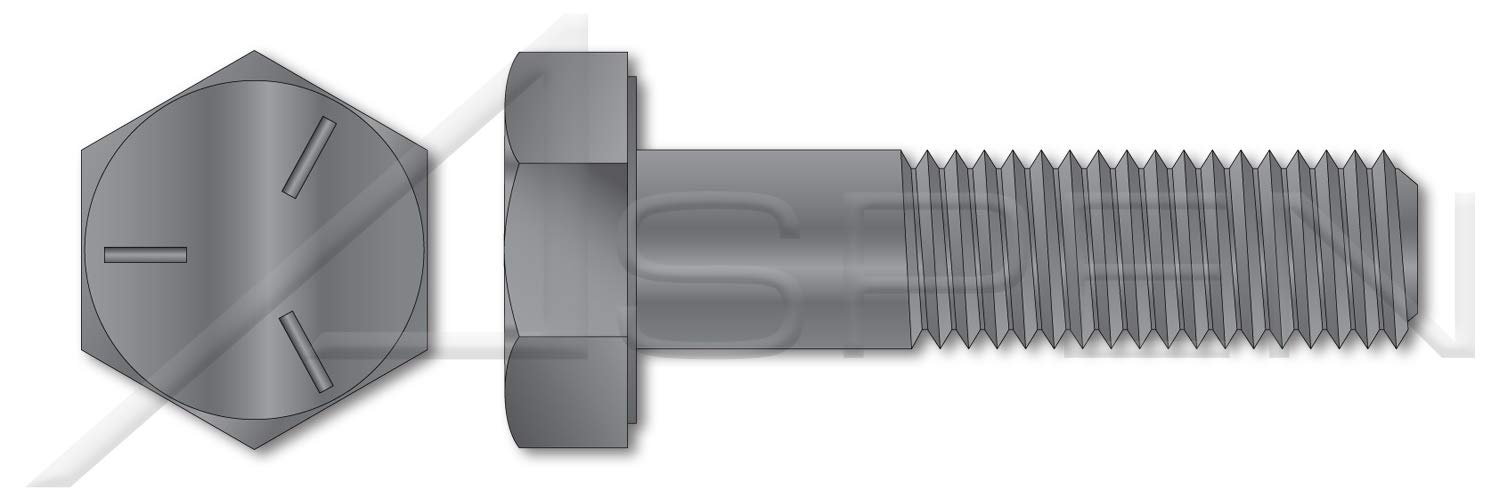

The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.
The washer face under the head provides a precision bearing surface.
Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.
The chamfered point improves engagement with a nut or pre-tapped hole.
