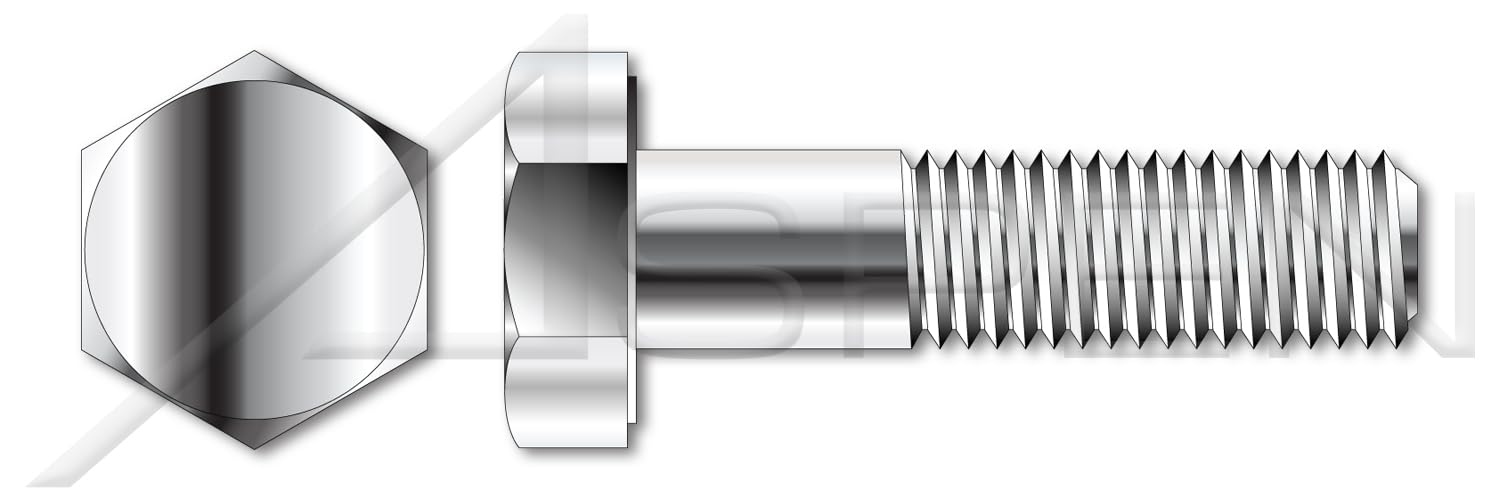

M10-1.5x340mm A4 Stainless Hex Bolts (10pcs) - DIN 931 for Marine & Outdoor

Hex cap screws are manufactured to tighter tolerances as compared to hex bolts. A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade". Stainless steel significantly improves resistance to tarnishing or corrosion. The washer face under the head provides a precision bearing surface. The chamfered point improves engagement with a nut or pre-tapped hole.DIMENSIONAL ATTRIBUTES Diameter (Nominal): M10 Thread Pitch: 1.5 Diameter (Dimension): 10mm Length (Nominal): 340mm Thread Length (Nominal): 45mm Across Flats (Basic): 17mm Across Flats (Minimum): 16.73mm Across Flats (Maximum): 17mm Head Height, Overall: 6.4mm Head Height, Overall (Minimum): 6.22mm Head Height, Overall (Maximum): 6.58mm Body Diameter (Minimum): 9.78mm Body Diameter (Maximum): 10mmPRODUCT ATTRIBUTES Category: Cap Screws System of Measurement: Metric Brand: Aspen Fasteners Head Style: Hex Head Head Style Detail: Washer Face Drive Style: External Hex Drive Pitch: Coarse Thread Thread Length: Part Thread Thread Direction: Right-Hand Thread Point: Chamfered Point Material: Stainless Steel Material Grade: A4 Stainless Steel Coating: Uncoated Standards and Specifications: DIN 931 / ISO 4014
